Beket 412 Bolted Rail Clips

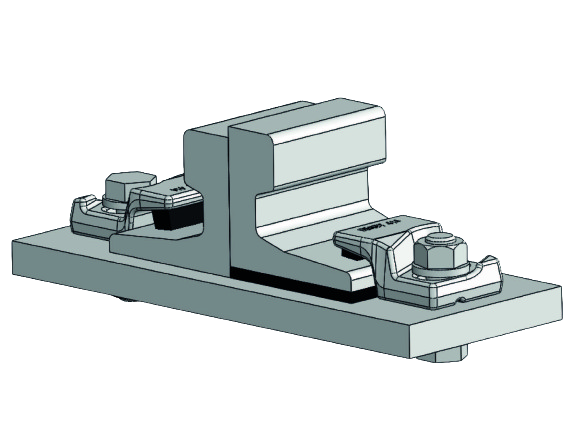

BEKET 412 bolted rail clip, which is
produced from a forged part, enables ease
of assembly thanks to its special desing.
The clips can preferred for rails with or
without pads.
The main part is locked to rail with M12
bolt and special washer.
The rubber nose increases the tolerances
of the rail support structures, reduces the
stress of the connections, allows a better
fixing of the rail.

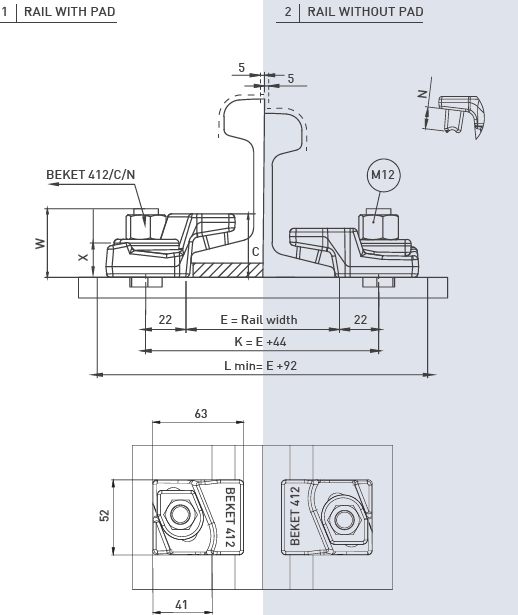

Dimensions (mm)	X	C	W	N	Weight (Kg)
BEKET 412/24/12	16	24	34	12	0,300
BEKET 412/31/12	16	31	34	12	0,340
